C-Shape Gantry Crane

Back

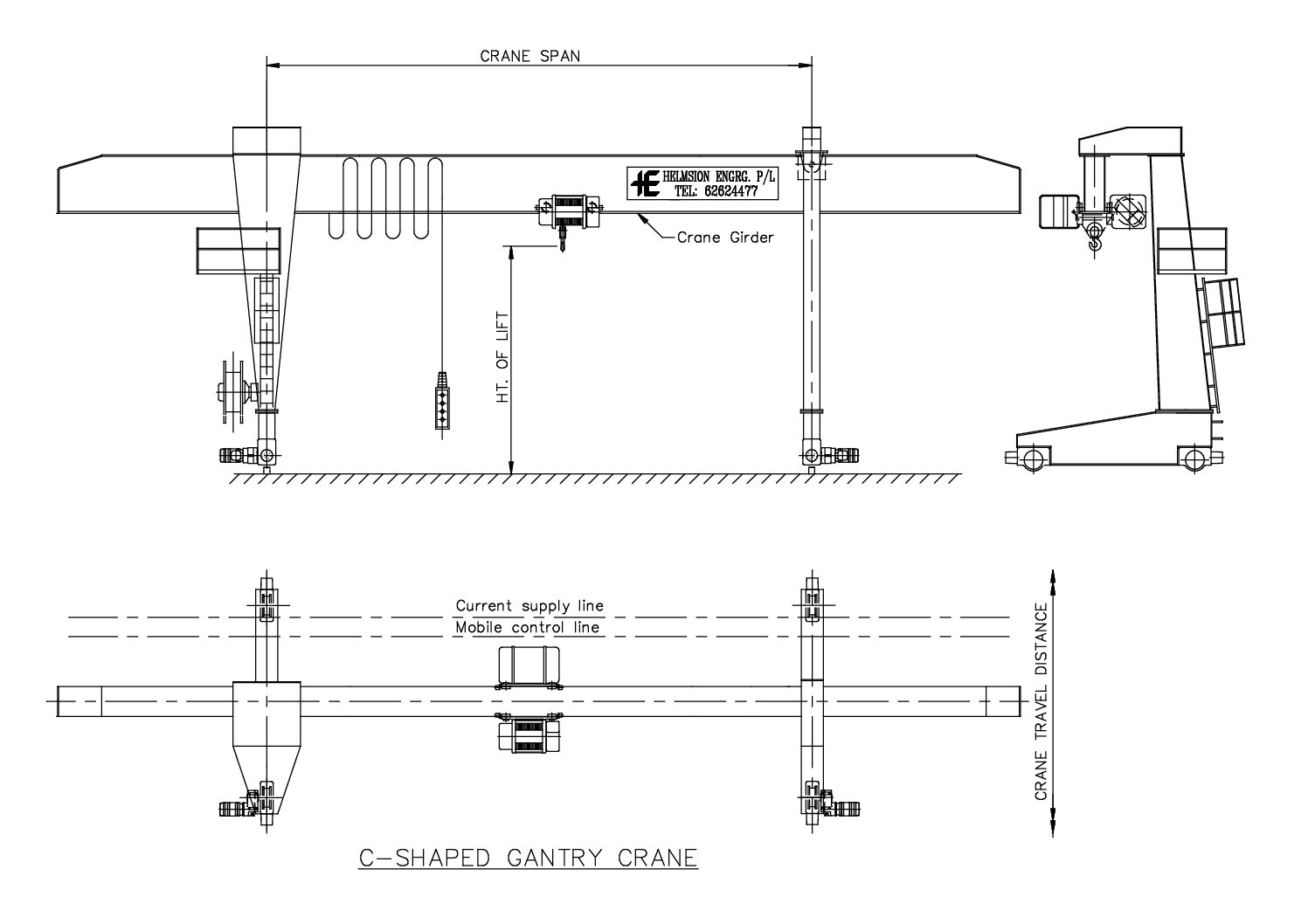

Helmsion C-Shape Gantry Cranes are specially designed for applications that require maximum access from one side of the working area, such as machine loading, assembly lines, or production cells. The unique C-frame structure allows unobstructed handling of loads from three sides, providing excellent flexibility, visibility, and operator convenience.

The crane capacity is customized to application requirements and ranges from 2 to 50 tonnes, with spans and lifting heights tailored to suit specific site and process needs. Travel and lifting speeds can be adjusted to match the required duty and handling precision.

Features & Benefits

  • Open-Side Access Design – C-shape frame allows easy loading and unloading from multiple sides.
  • High Structural Stability – Rigid gantry construction ensures safe and balanced lifting.
  • Efficient Space Utilization – Ideal for areas where standard gantry legs would obstruct workflow.
  • Smooth & Controlled Travel – Ensures precise positioning along floor-mounted rails.
  • Versatile Applications – Suitable for machine tending, fabrication, and material transfer tasks.
  • Reliable Performance – Built with heavy-duty components for consistent industrial operation.
  • Easy Maintenance – Simplified, service-friendly design enables quick inspection and reduced downtime.
